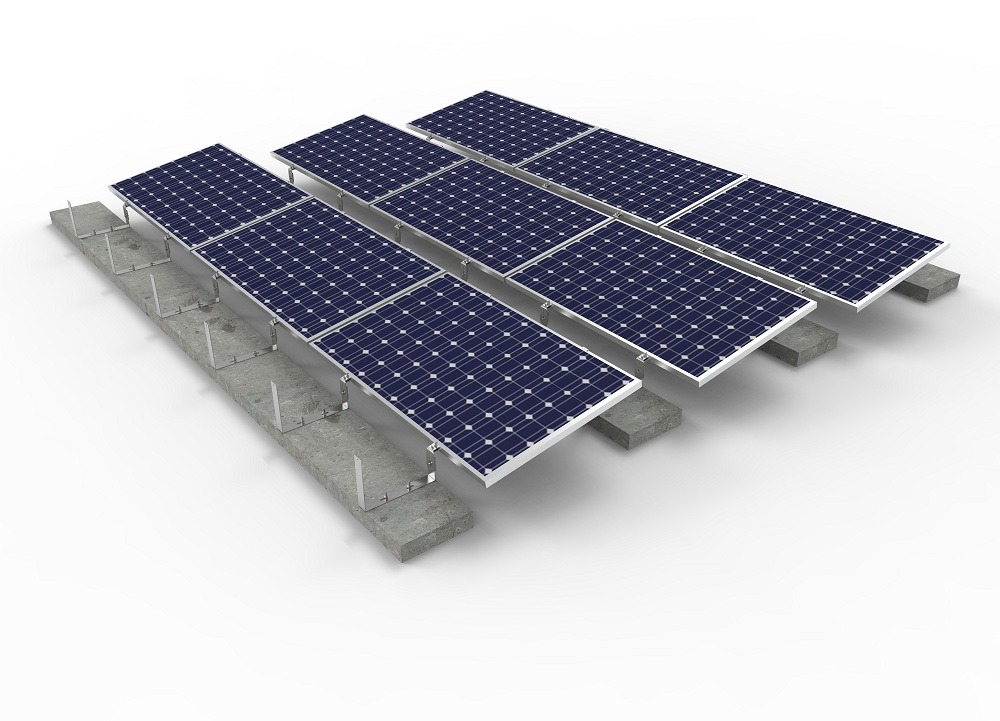

Light ballast system mounting solution
The carbon steel bracket system is suitable for a wide horizontal floor. The bracket system is made of hot-dip galvanized carbon steel material, so the overall stability of the bracket is strong against wind and snow. For different foundation solutions, the bracket system can be fixed to the cement foundation by means of pre-embedded anchor bolts, or it can be fixed directly to the ground by spiral piles. The system is flexible in design, diverse in structure and wide in scope.
technical parameterMaximum wind resistance: 45m/s
Maximum snow resistance: 0.8KN/m2
Span range: 0.1-1.8m
Briquetting standard length: 40mm
Design standard: AS/NZS1170 ASCE 7-05 DIN1044, etc.
Performance parameterInstallation site: porcelain tile roof
Body material: AL6005-T5/sus304
Fastener material: SUS304
Applicable components: framed or frameless
Applicable arrangement: vertical or horizontal
Warranty period: 10 years
Product Features
- Easy installation

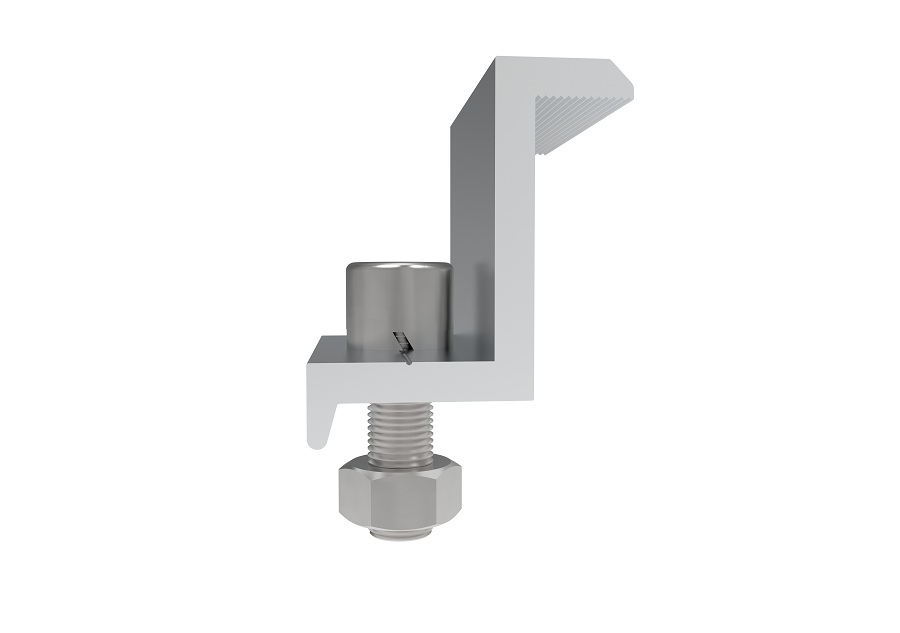

Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency. - Strong compatibility
The product has innovative track and D-type block design, making installation more convenient and fast. Highly pre-assembled and custom solutions save your installation time and costs. - Safe and reliable
Made of high-quality aluminum alloy and stainless steel to prevent corrosion and oxidation; recycling, green and environmental protection. The overall structure fully considers the load-bearing, wind-resistant, anti-snow and other factors to ensure safety and reliability.
