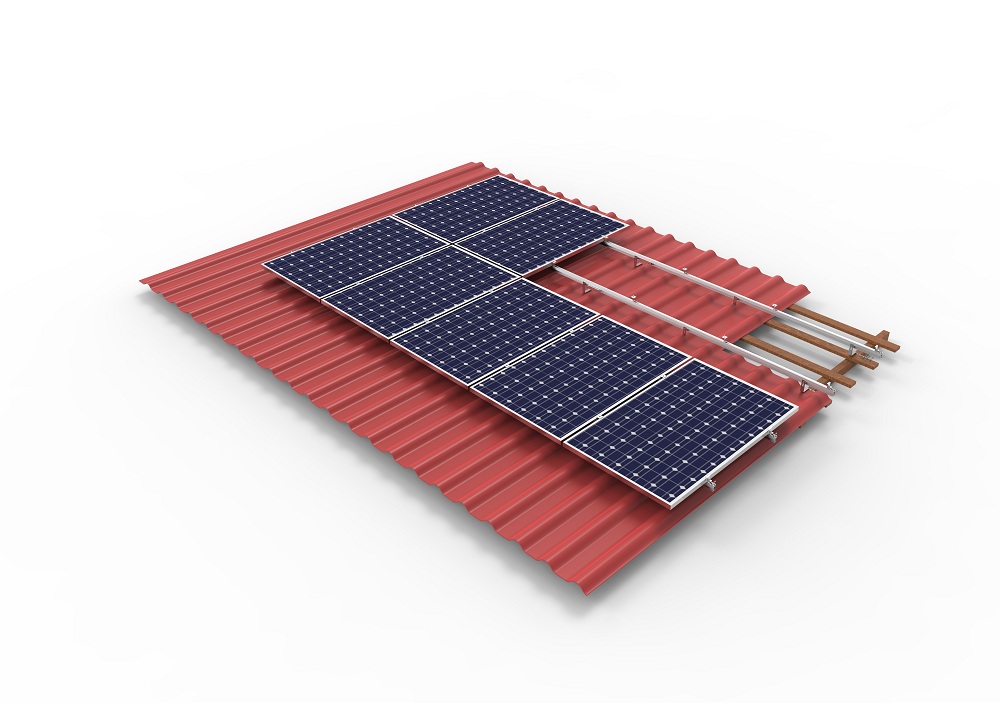

Tile Roof Mounting Solution
TSDsolarpitchedroofmountingsystemhasgreatflexibilityandextremelysuitablefor rooftopsolarsystembothincommercialandresidentialhouse.Theinnovativerailway andDshapeblockdesignshavemadetheinstallationeasierandfaster.Its preassemblyandcustomizedsolutionshasbeentime-savingandcost-efficient.
SpecificationMaxwindcapacity：45m/s
Maxsnowcapacity：0.8KN/m2
Spanrange：0.1-1.8m
Standardlengthofblock：40mm
Designstandard：AS/NZS1170,ASCE7-05,DIN1044
Performance parameterInstallationsite：tileroof
Mainmaterial：AL6005-T5/SUS304
Fastenermaterial：SUS304
Applicablemodules：frameorframeless
Componentarrangement:horizontal/vertical
Warranty: 10 years

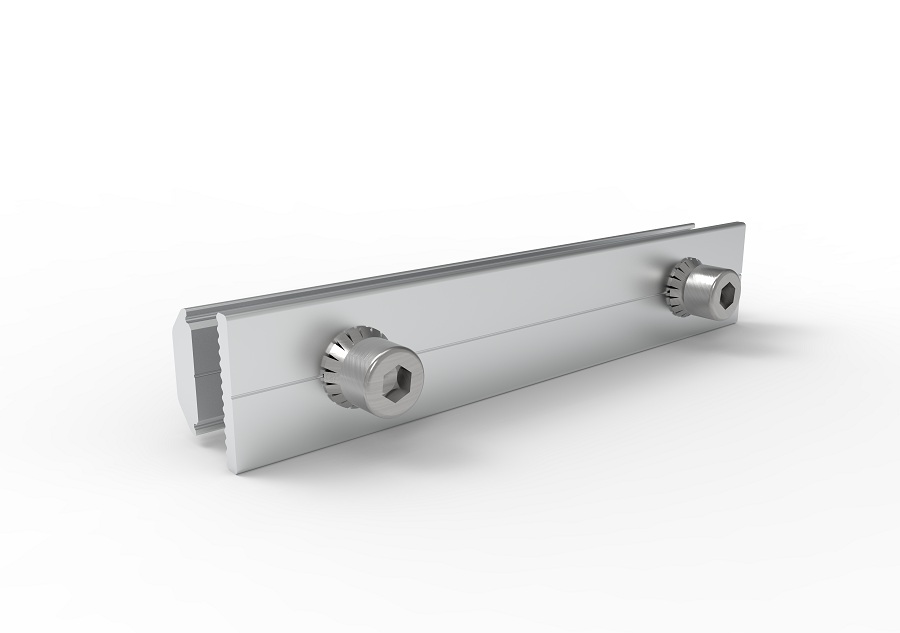

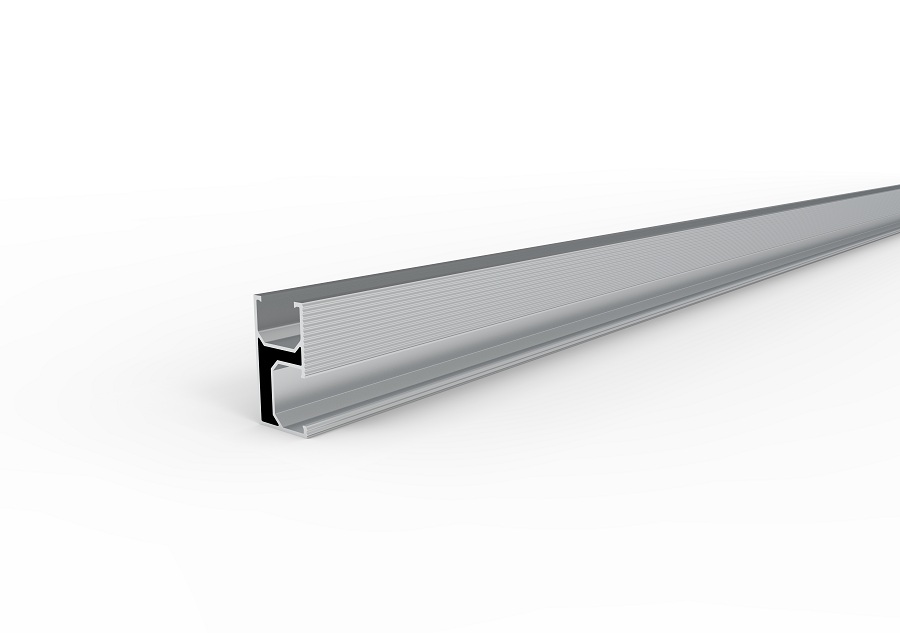

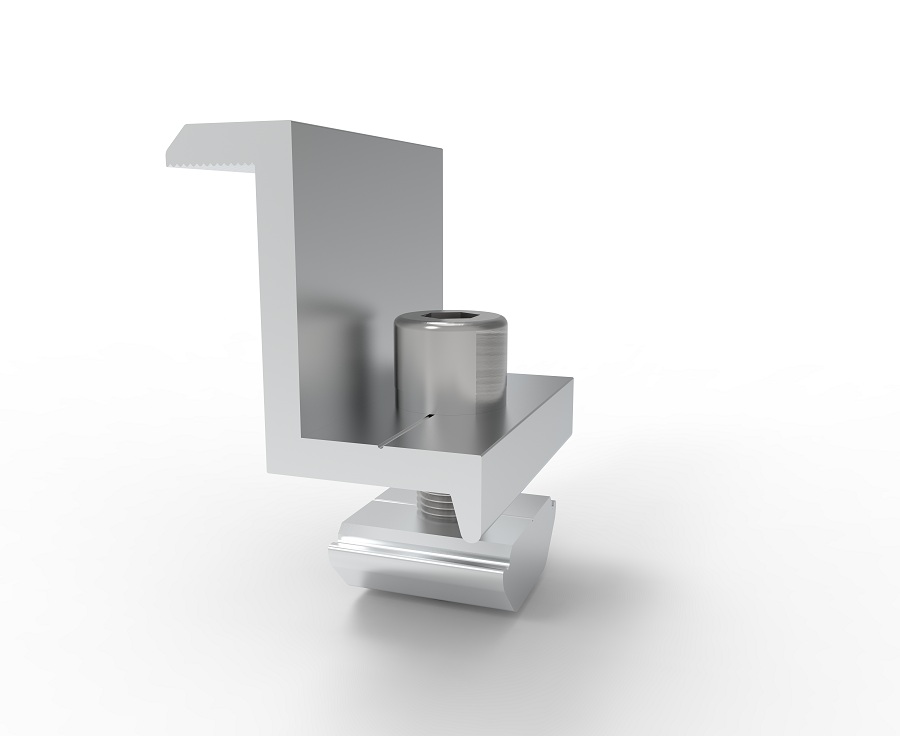

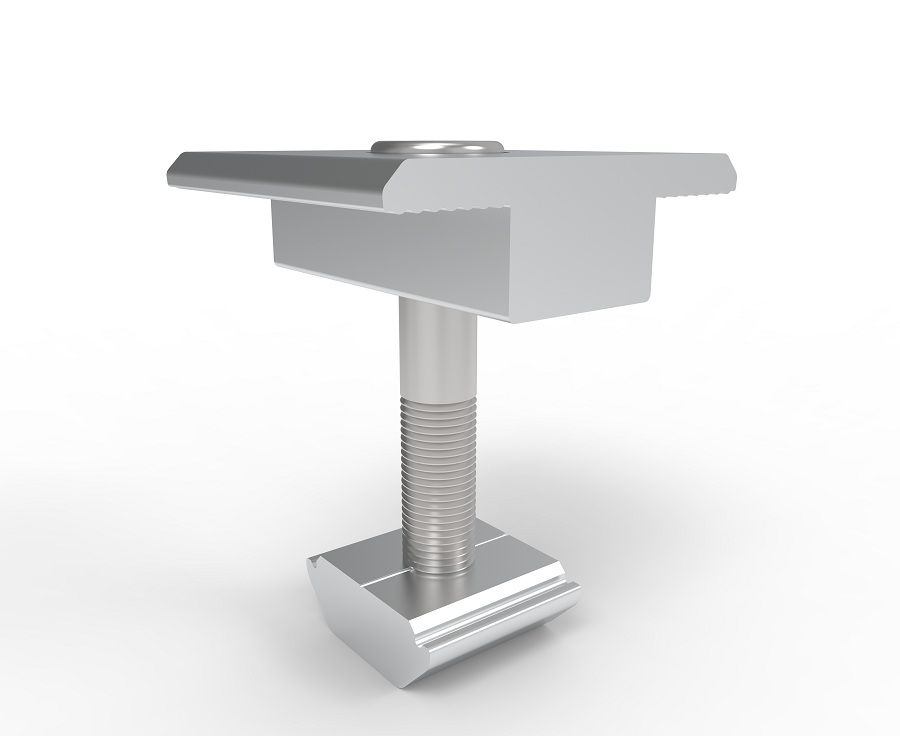

Bracket System Components
Product Features
- Easy installation
Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency. - Strong compatibility
The product has innovative track and D-type block design, making installation more convenient and fast. Highly pre-assembled and custom solutions save your installation time and costs. - Safe and reliable
Made of high-quality aluminum alloy and stainless steel to prevent corrosion and oxidation; recycling, green and environmental protection. The overall structure fully considers the load-bearing, wind-resistant, anti-snow and other factors to ensure safety and reliability.

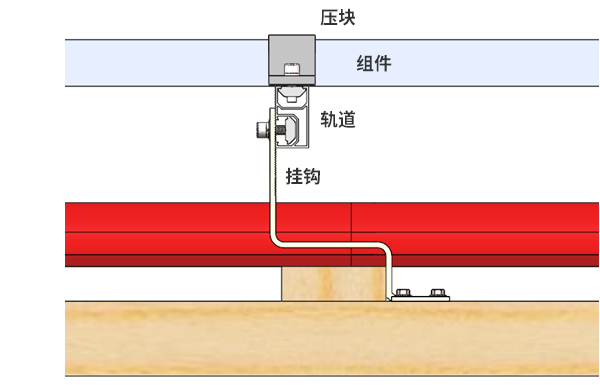

Installation instructions

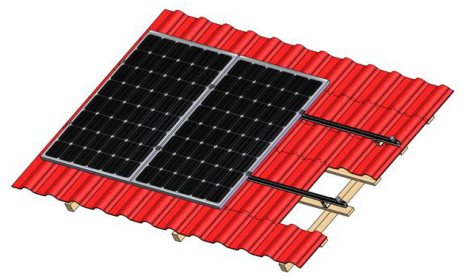

Installation Guide

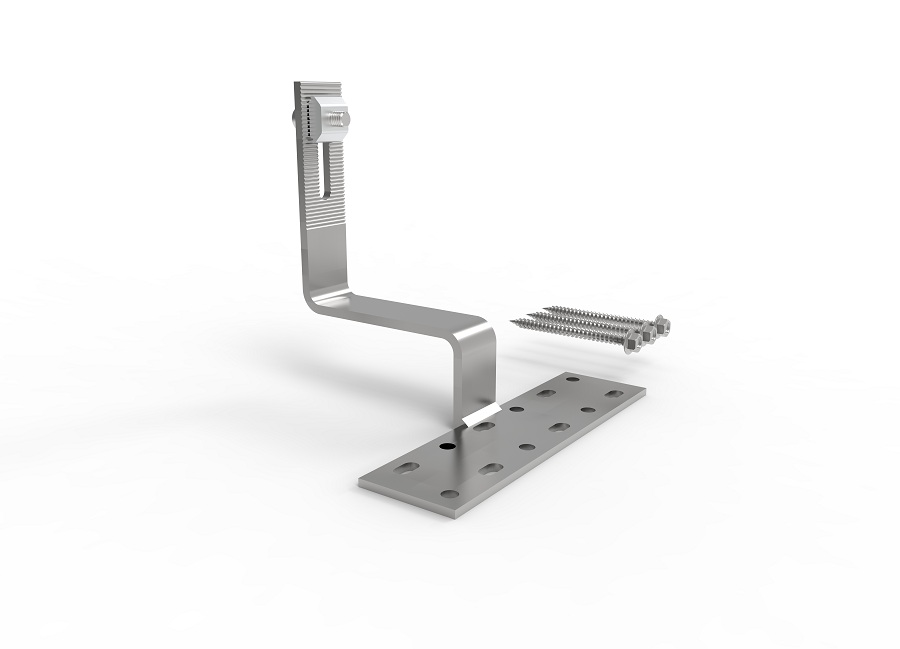

Step 1: remove the tile Step 2: install the hook
Step 3: install the rail Step 4: install panels
Case show
