Tin Roof Railless Mounting Solution

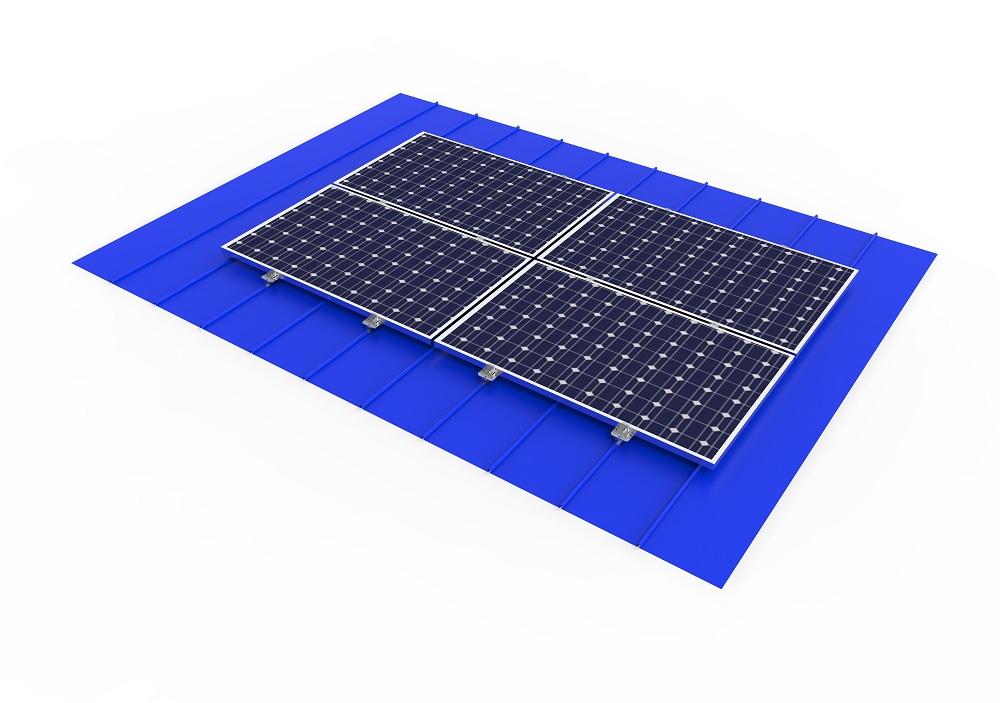

Railless mounting solutions are widely used in large scale warehouse and workshop
tin roof. The seam clamps are mounted directly onto the tin roof without any
perforation or drilling which cause no damages to the roof. Without the rails, this
solution is easy installed, structural durable and cost-effective with extremely strong
snow load capacity.
SpecificationMax wind capacity：42m/s
Max snow capacity：2KN/m2
Span range：customized to the tin roof types
Standard length of block：40mm
Design standard：AS/NZS1170, ASCE 7-05,DIN1044,
GB50797-2012 ,GB5009-2012
Performance parameterInstallation site: tin roof
Main material：AL6005-T5 / SUS304
Fastener material：SUS304
Applicable modules：frame or frameless
Component arrangement: horizontal / vertical
Warranty：10 years

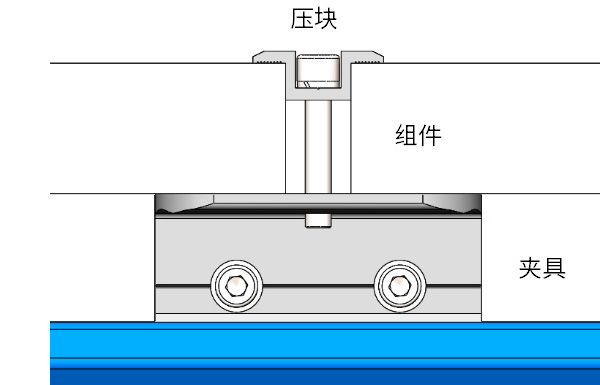

Bracket System Components
Product Features
- Easy installation
Tongshengda's self-developed fixtures can be easily installed with a simple tool. Installation only needs to tighten the ridge and lock bolts, two actions. Greatly reduce the difficulty of installation and shorten the working hours. - Strong speciality
The fixture is suitable for a specific tile ridge. The professional structural design makes the support and the tile ridge perfect. It will not cause any damage to the tile ridges, and the ridges will remain as large as possible. No need to pierce or modify the tile ridges to avoid leakage. It also guarantees the drainage effect of the tile ridge, and is perfectly integrated with the tile ridge. - Strong compatibility
The fixture can meet the installation requirements of different specifications of PV modules. It can be combined with other equipment to form a complete bracket system, which is a stable and versatile connection platform. - High precision
The length of the clamp is accurate to the millimeter. During the construction process, the second cutting is not carried out because the length is too long or too short. - Safe and reliable
The fixtures are made of high quality aluminum and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.
Installation instructions
Installation Guide
Step 1: install the clamps and fasten Step 2: fasten the panels with end clamps
Step 3: fasten the panels with mid clamps Step 4: finished
