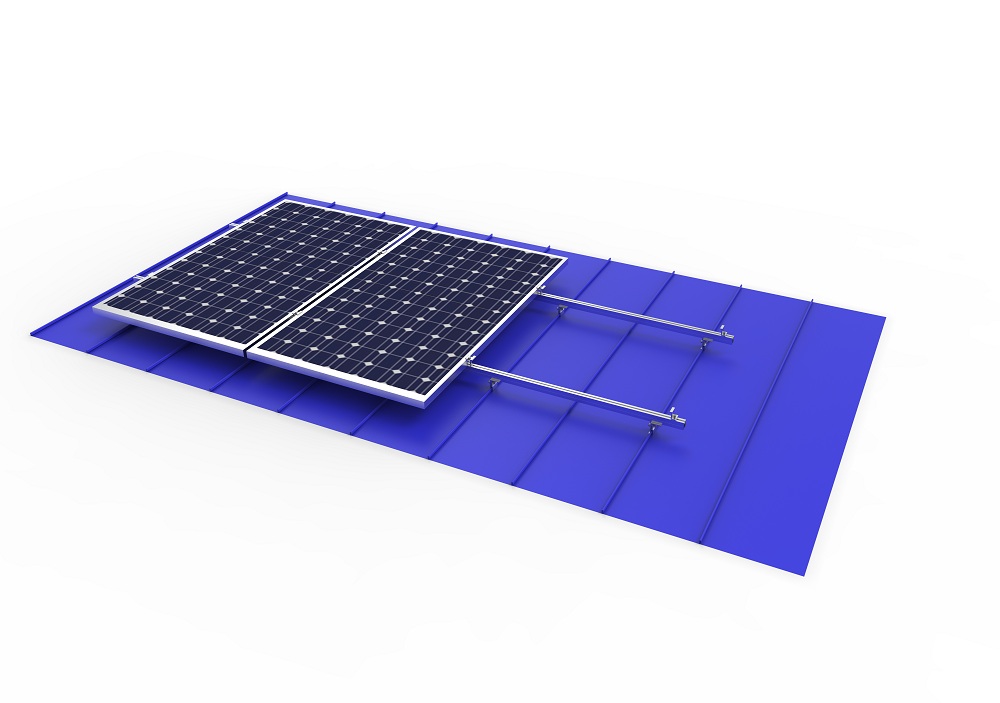

Tin Roof Standing Seam Clamp Mounting Solution
Due to different shapes of tin roof, there are types of standing seam clamps such as
vertical edge locking clamp, angle type clamps and trapezoidal clamps etc. TSD has
developed kinds of tin roof clamps over the past decade. The vertical edge locking
clamps and angle type clamps are mounted onto the tin roof directly without any
perforation or drilling, which makes the roof without any water-proof problems.These clamps are widely used in the warehouse or workshop tin roofs which are structure efficient and durable.
SpecificationMax wind capacity：44m/s
Max snow capacity：0.8KN/m2
Span range：0.1-1.8m
Standard length of block：40mm
Design standard：AS/NZS1170,ASCE 7-05, DIN1044
Performance parameterInstallation site: tin roof
Main material：AL6005-T5 / SUS304
Fastener material：SUS304
Applicable modules：frame or frameless
Component arrangement: horizontal / vertical
Warranty：10 years

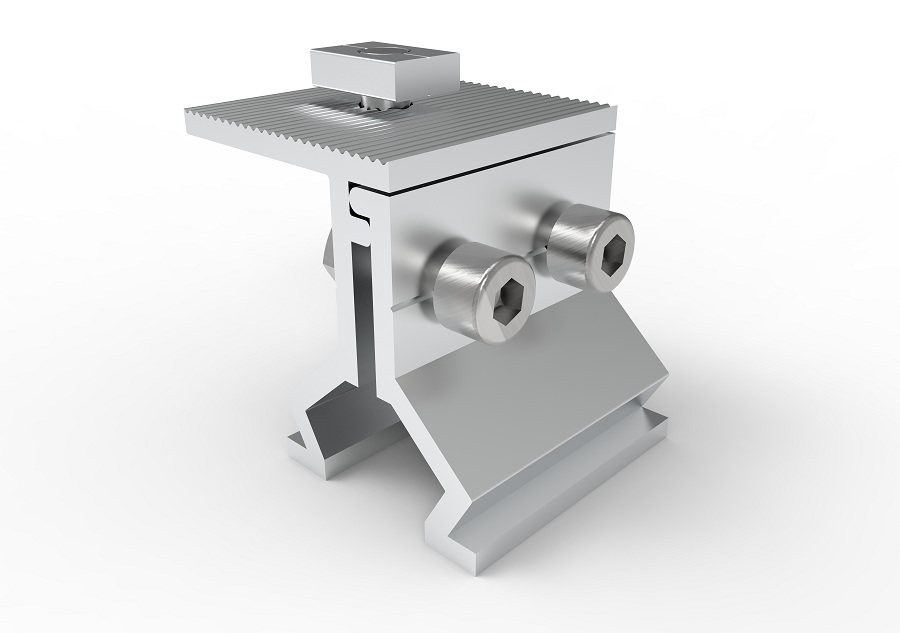

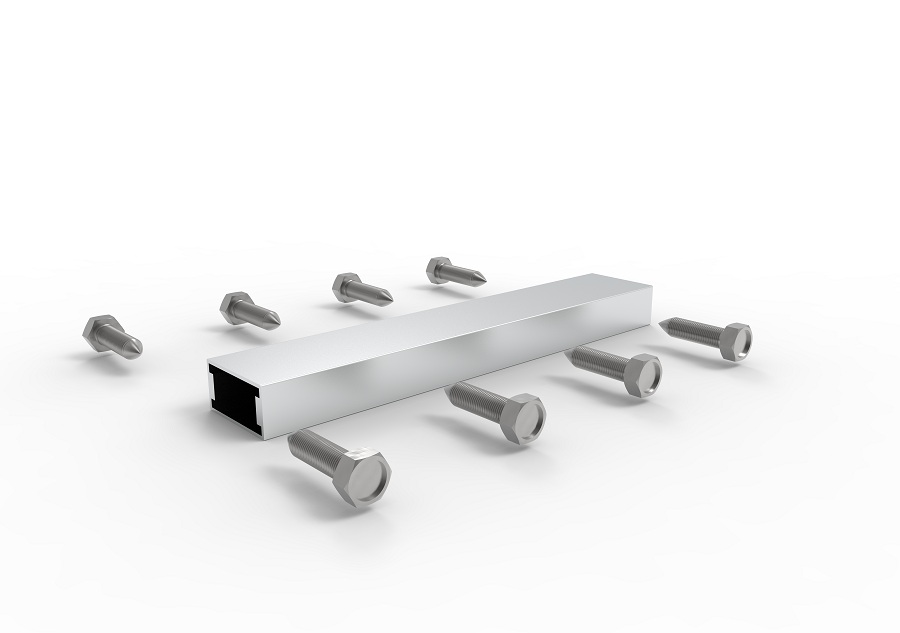

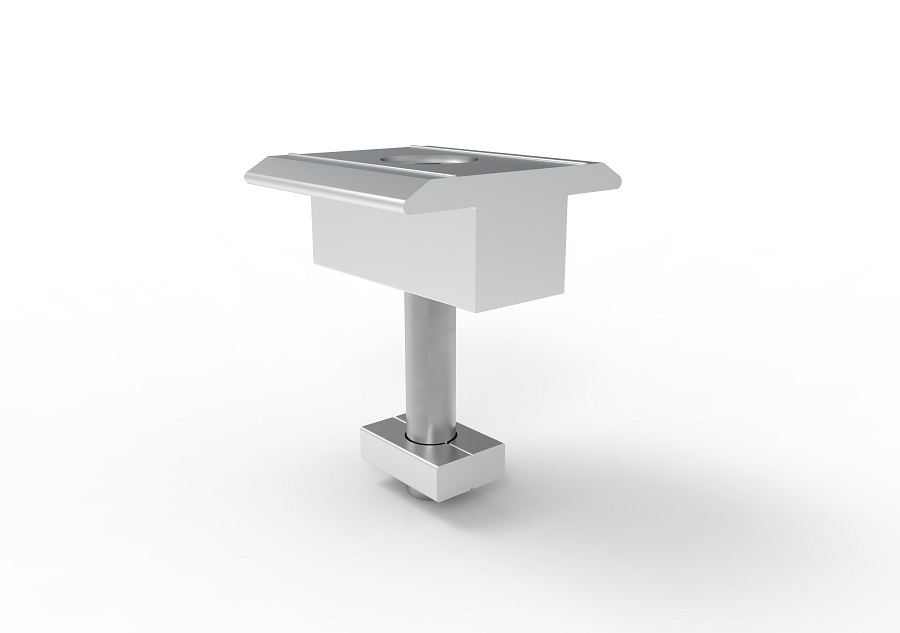

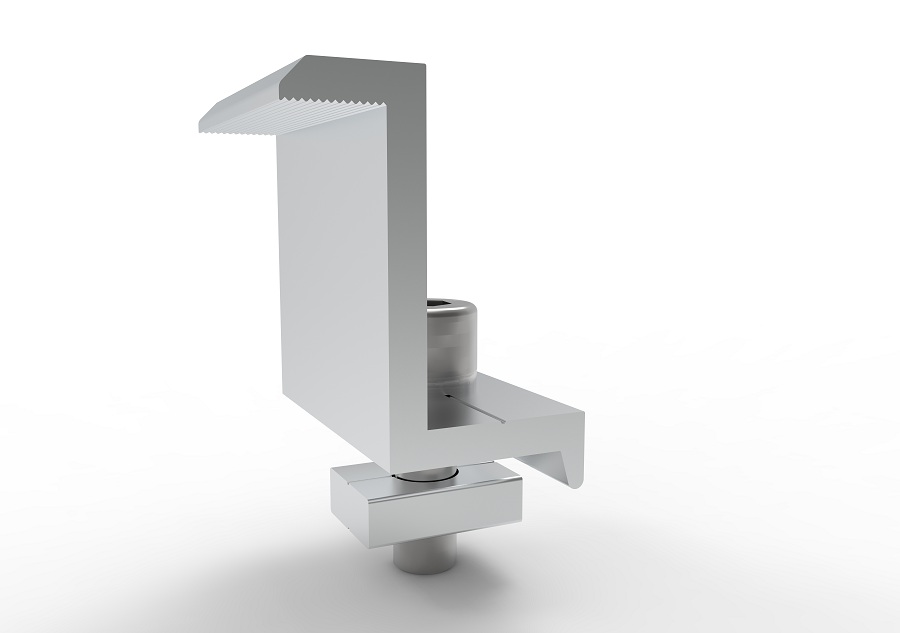

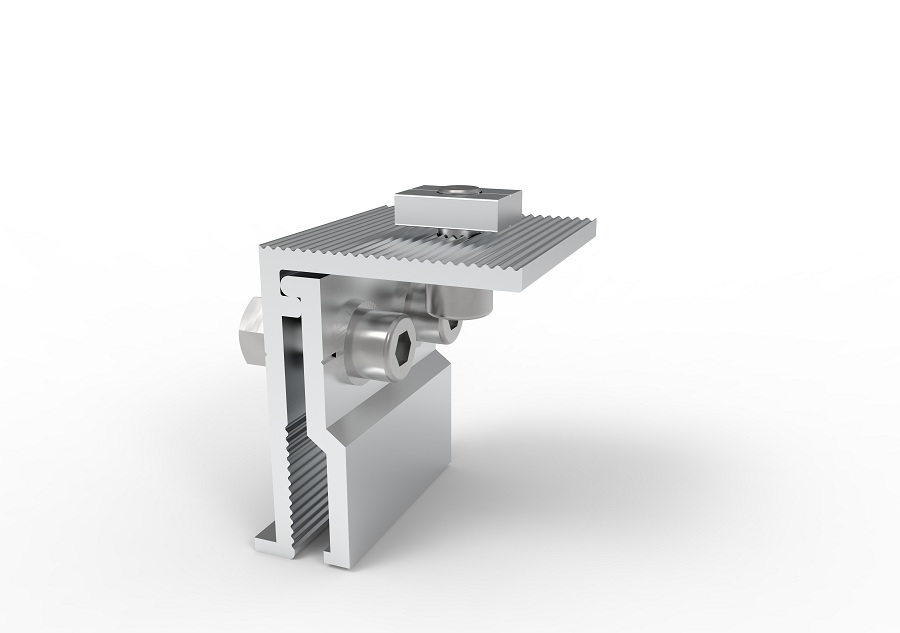

Bracket System Components
Product Features
- Easy installation
Tongshengda's self-developed fixtures can be easily installed with a simple tool. Installation only needs to tighten the ridge and lock bolts, two actions. Greatly reduce the difficulty of installation and shorten the working hours. - Strong speciality
The fixture is suitable for a specific tile ridge. The professional structural design makes the support and the tile ridge perfect. It will not cause any damage to the tile ridges, and the ridges will remain as large as possible. No need to pierce or modify the tile ridges to avoid leakage. It also guarantees the drainage effect of the tile ridge, and is perfectly integrated with the tile ridge. - Strong compatibility
The fixture can meet the installation requirements of different specifications of PV modules. It can be combined with other equipment to form a complete bracket system, which is a stable and versatile connection platform. - High precision
The length of the clamp is accurate to the millimeter. During the construction process, the second cutting is not carried out because the length is too long or too short. - Safe and reliable
The fixtures are made of high quality aluminum and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.
Installation instructions
Installation Guide

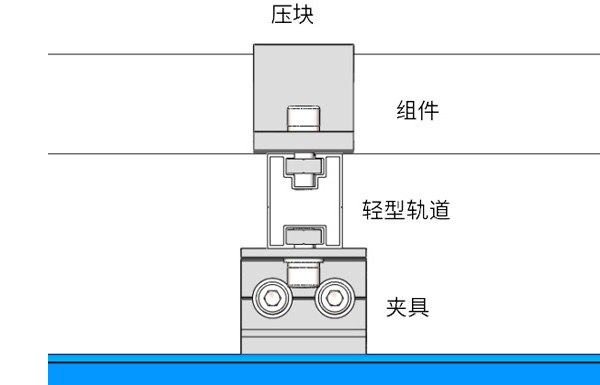

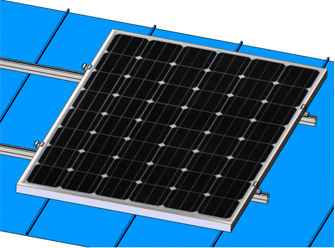

step 1: side the clamps into the light rail Step 2: adjust clamps distance, fasten onto the roof
Step 3: slide the end and mid clamps into the rail Step 4: install the panels
